ITEM DETAILS
Meter Reading
13,001 Hours
Serial #

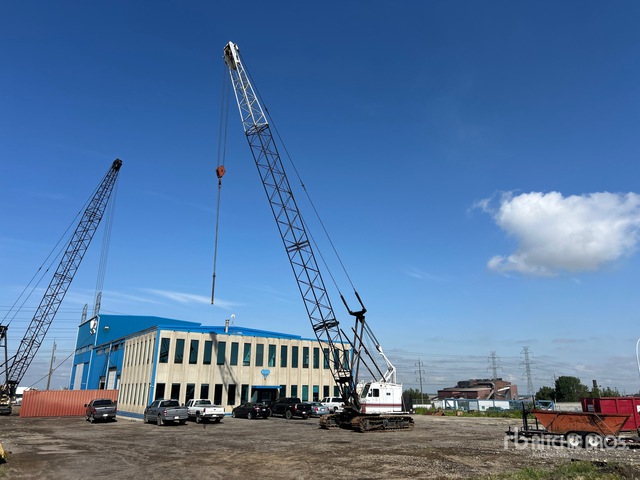

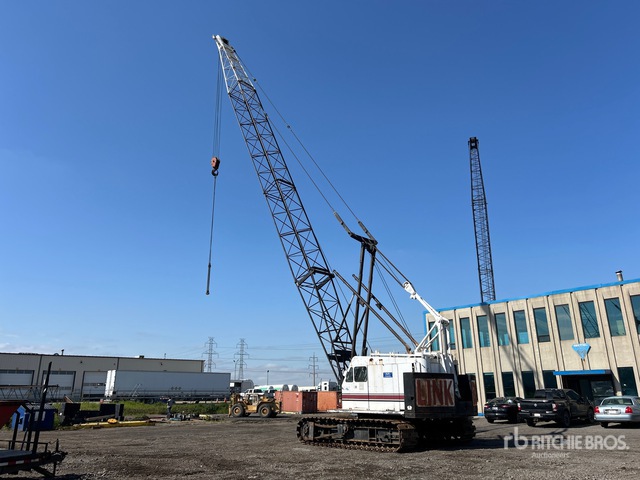

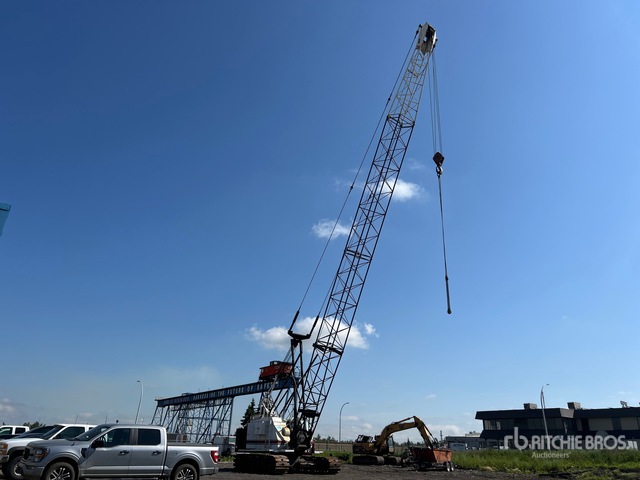

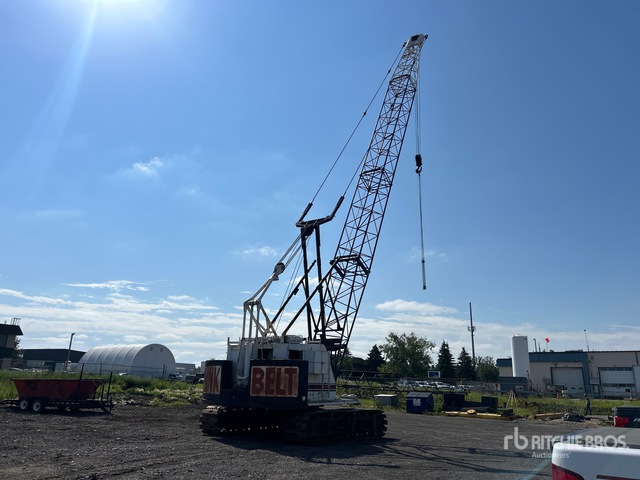

Cranesmart Load Moment Indicator, Engine Coolant Heater, 160 ft Boom, Auxiliary Hoist, 3rd Drum, 3 Sheave Hook Block, 36 in Smooth Track Shoes, Expandable Width Tracks

Inspection Report



Please note that as the buyer, you are responsible for reviewing the entire inspection report when evaluating an item.


General Appearance
Description Rating Details
Hour Meter / Odometer 13001.4 hrs - No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed. Click here to open photos and videos of this item.
Paint Click here to open photos and videos of this item.
Sheet Metal (fiberglass) Condition Click here to open photos and videos of this item.
Steps/Ladders Click here to open photos and videos of this item.
Glass Click here to open photos and videos of this item.
Exterior Lights Operational Click here to open photos and videos of this item.
Safety Certification Label There is a safety certification label with a date of May 6 /2016 Click here to open photos and videos of this item.
Safety Certification Report Safety Certification Report Not Available
Load Chart Yes Click here to open photos and videos of this item.
(35)


Safety
Description Rating Details
Travel Alarm Missing
Horn Operational
Seat Belts Not equipped
Current Safety Manual No
Current Operator/Maintenance Manual Yes


Control Station - Upper
Description Rating Details
Glass No visible damage Click here to open photos and videos of this item.
Seats/Armrests Click here to open photos and videos of this item.
Load Moment Indicator Not operationally checked with a load., Cranesmart Click here to open photos and videos of this item.
Controls Hydraulic or Air Drum controls could not be operationally checked Click here to open photos and videos of this item.
Load Charts Posted on cab wall, Chart book in cab Click here to open photos and videos of this item.
Oil Pressure The gauge registers in the operating range. Click here to open photos and videos of this item.
Gauges Operational, Water temp appears inop gauges are inoperable Click here to open photos and videos of this item.
Hoist Brakes Not operationally checked Click here to open photos and videos of this item.
Drum Rotation Indicator Not operationally checked Click here to open photos and videos of this item.
Heater Inoperable Click here to open photos and videos of this item.
Limited Function Check The main components are in place and operational as noted.
(18)


Engine
Description Rating Details
Engine No US EPA Label Present
Blow-by (subjective visual observation) Minor Click here to open photos and videos of this item.
Starter Operational
Exhaust System Click here to open photos and videos of this item.
Radiator Unable to verify overheating, water temp gauge inoperable Click here to open photos and videos of this item.
Oil Leaks No dripping leaks Click here to open photos and videos of this item.
Fuel Leaks No dripping leaks Click here to open photos and videos of this item.
Cooling System Leaks No dripping leaks Click here to open photos and videos of this item.
Engine - Left Side Click here to open photos and videos of this item.
Engine - Right Side Click here to open photos and videos of this item.
Limited Function Check The engine started and ran. Click here to open photos and videos of this item.
(12)


Drivetrain
Operational test is limited to low speed in a confined flat area without load. Differential interlocks, full transmission shifting and functionality of all drive axles cannot be fully verified. Inspector listens for abnormal noises, observes leaks and notes physical damage.
Description Rating Details
Steering Clutches (Crane) Unit is tough to turn Click here to open photos and videos of this item.
Clutch Engages
Drive Chains/Sprockets Click here to open photos and videos of this item.
Drive Motors Piece unattached on right side Click here to open photos and videos of this item.
Final Drives Click here to open photos and videos of this item.
Limited Function Check (Drivetrain-Crawler Crane) The drivetrain was operational except as noted.
(7)


Hydraulics
See photos for condition
Description Rating Details
Hydraulic Tank Click here to open photos and videos of this item.
Hoses (Hydraulic) Click here to open photos and videos of this item.
Main Hoist Not operationally checked Click here to open photos and videos of this item.
Auxiliary Hoist Not operationally checked Click here to open photos and videos of this item.
Limited Function Check The hydraulic system could not be operationally checked.
(11)


Crane Superstructure
Description Rating Details
Hoist Drums Mechanical Draw Works, Not operationally checked Click here to open photos and videos of this item.
Boom Drums Mechanical Draw Works, Not operationally checked Click here to open photos and videos of this item.
Hoist and Boom Clutches Not operationally checked Click here to open photos and videos of this item.
Main Boom Pins Unable to verify wear Click here to open photos and videos of this item.
Pendant Line (Boom Tension Line) Cable Type, Appear in good condition Click here to open photos and videos of this item.
Point Sheaves Bent in some spots Click here to open photos and videos of this item.
Boom Point Section Cracking around welds Click here to open photos and videos of this item.
Gantry/Mast Looks to be in okay shape, not operationally checked Click here to open photos and videos of this item.
Boom Stops Look to be in ok shape Click here to open photos and videos of this item.
Main Boom Chords 1 bent piece, all pieces beginning to rust Click here to open photos and videos of this item.
Boom Length 40 ft overall length, 160 ft tip section, 5 Sections Click here to open photos and videos of this item.
Boom Angle Indicator Click here to open photos and videos of this item.
Turntable Bearing Click here to open photos and videos of this item.
Bottom Covers Click here to open photos and videos of this item.
Hook Rollers Click here to open photos and videos of this item.
Swing Drive Operational, Noisy, Swing brake slow to respond, Swing brake does not hold
Limited Function Check The main components were operational with movement as indicated
(63)


Undercarriage
Description Rating Details
Left Roller Frame Click here to open photos and videos of this item.
Left Track Tensioner Click here to open photos and videos of this item.
Left Track Pads Click here to open photos and videos of this item.
Left Grouser Height 0 mm Click here to open photos and videos of this item.
Left Track Links Click here to open photos and videos of this item.
Left Track Bushings Click here to open photos and videos of this item.
Left Carrier Rollers Click here to open photos and videos of this item.
Left Track Rollers Click here to open photos and videos of this item.
Left Idler Click here to open photos and videos of this item.
Left Sprocket Click here to open photos and videos of this item.
Right Track Tensioner Click here to open photos and videos of this item.
Right Track Pads Click here to open photos and videos of this item.
Right Grouser Height 0 mm Click here to open photos and videos of this item.
Right Carrier Rollers Click here to open photos and videos of this item.
Right Track Rollers Click here to open photos and videos of this item.
Right Idler Click here to open photos and videos of this item.
Right Sprocket Click here to open photos and videos of this item.
(27)


Specialty
Description Rating Details
Main Load Block Unable to function sheaves Click here to open photos and videos of this item.
Third Drum Disconnected Click here to open photos and videos of this item.
Counterweights Click here to open photos and videos of this item.
(11)
